NC Spiral Round Paper Tube Machine ZG‑250‑2 Dual‑Head High‑Speed Automatic Paper Core & Paper Can Winding Machine

NC Spiral Round Paper Tube Machine ZG‑250‑2 Dual‑Head High‑Speed Automatic Paper Core & Paper Can Winding Machine
Product Overview

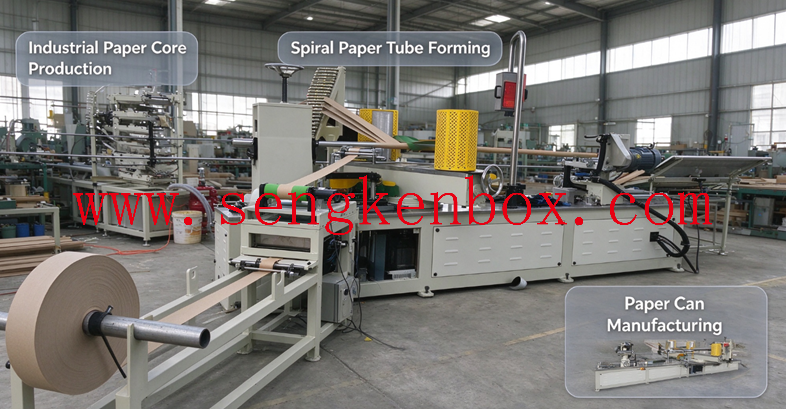

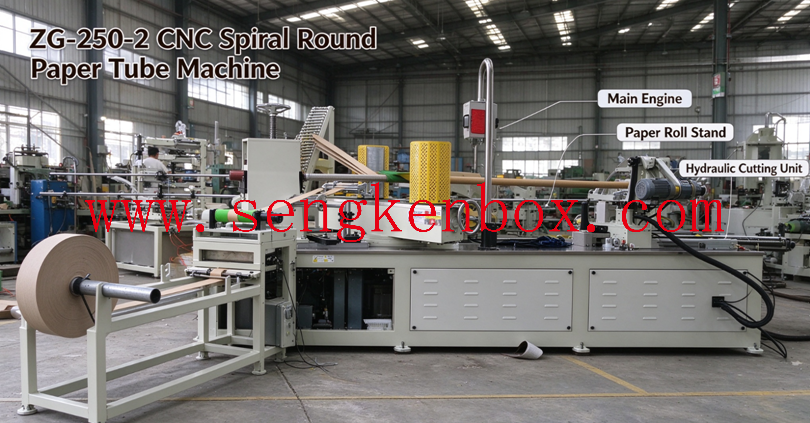

ZG‑250‑2 CNC spiral paper tube machine is a dual‑head industrial spiral winding equipment for manufacturing high‑strength spiral paper tubes, paper cores and paper cans. Adopting advanced Mitsubishi PLC & servo control system, it completes paper feeding, double‑side gluing, spiral winding, forming and hydraulic cutting in one continuous workflow. It greatly reduces manual operation and improves finished tube roundness and structural stability.
This model is widely used to produce paper cores for adhesive tapes, textile yarn, plastic film, label rolls, as well as packaging paper cans for food, gifts and industrial packaging. Only 1‑3 operators are required for full‑line running, ideal for medium‑and‑large scale paper tube factories seeking stable high‑volume production.
Note: All parameters are for reference, final specifications subject to seller’s confirmation.

Core Advantages
1.Genuine Brand Electric Components for Stable Operation
Equipped with Mitsubishi inverter, PLC controller, touch screen and servo motor, together with OMRON encoder. Famous‑brand electric parts minimize failure rate and extend machine service life, suitable for long‑time non‑stop industrial production.
2.Wide Production Range & Strong Compatibility
Inner diameter from Φ20mm up to Φ250mm; tube wall thickness adjustable 1‑4mm; supports 3‑6 layers of paper materials. You can switch production between thin light‑duty packaging tubes and heavy‑load industrial paper cores quickly by replacing molds.

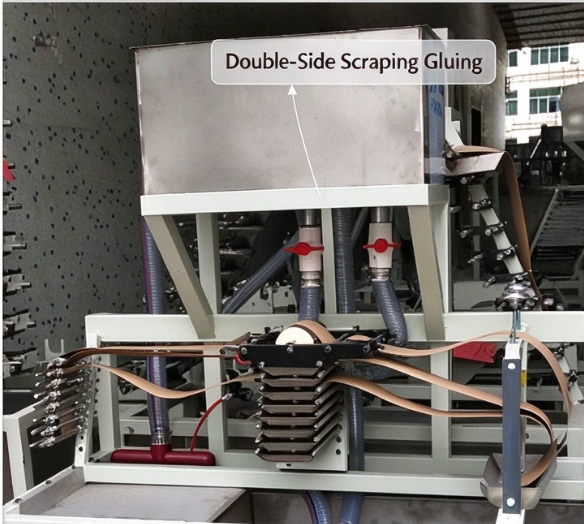

3.Dual‑Head Design + Double‑Sided Scraping Gluing System

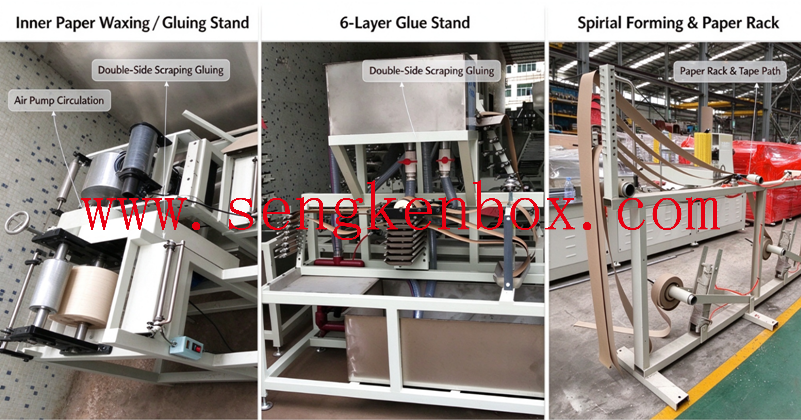

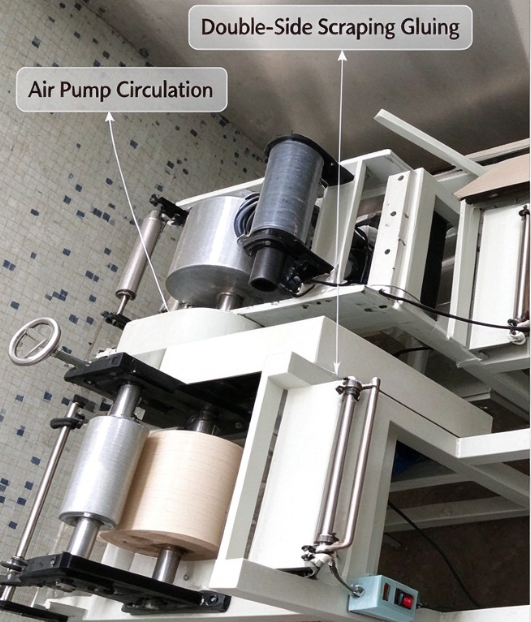

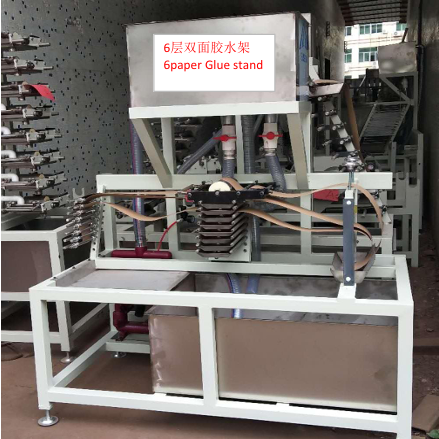

Two winding heads improve production capacity. 6‑layer glue stand with double‑side scraping gluing + air‑pump automatic glue circulation. Glue coating is uniform, glue waste is reduced, and paper layers bond tightly without delamination. Separate inner paper waxing/gluing stand and outer paper gluing stand satisfy complex production requirements.
4.Hydraulic Single‑Round‑Knife Cutting & Adjustable Winding Angle
Hydraulic round knife delivers neat, burr‑free tube end surface. Main‑host swing angle is controlled by electric button; pulley swing angle is manually adjustable, easy to change spiral winding angle for different tube performance demands.
5.High Production Speed & Labor‑Saving
Production speed ranges from 1‑25 m/min. Frequency‑conversion speed regulation. Only 1‑3 workers can run the whole production line, effectively cutting labor cost for your workshop.
6.Complete Standard Configuration, Ready‑to‑Produce After Installation
Full set includes forming host, collecting table, tube mould, outer‑paper gluing stand, inner‑paper waxing/gluing stand, paper rack, tool box, belts and other spare parts. No extra large‑amount accessory purchasing needed.

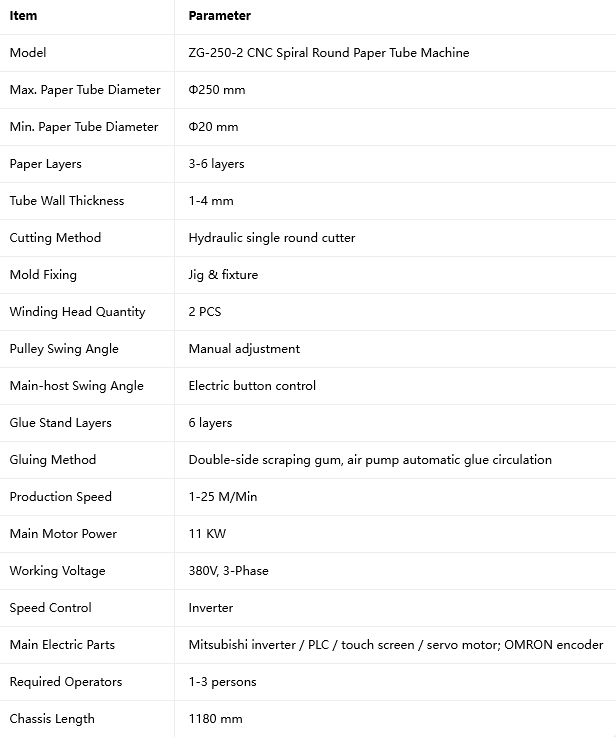

Technical Specifications

Complete Machine Accessories List
1 set Forming Main Host
1 set Collecting / Receiving Table
1 PC Tube Mould
1 PC Outer Paper Gluing Stand
1 PC Inner Paper Waxing / Gluing Stand

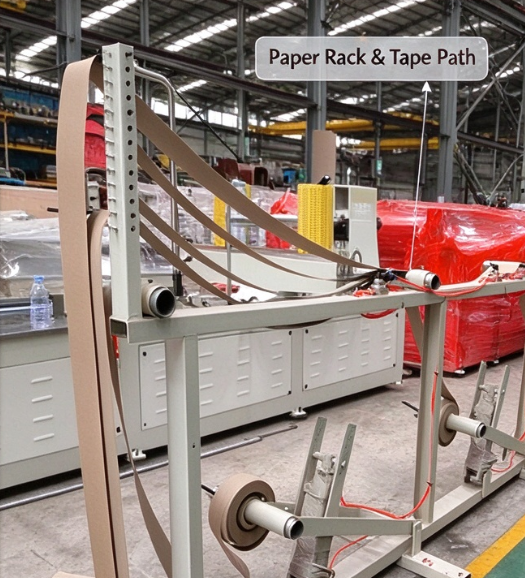

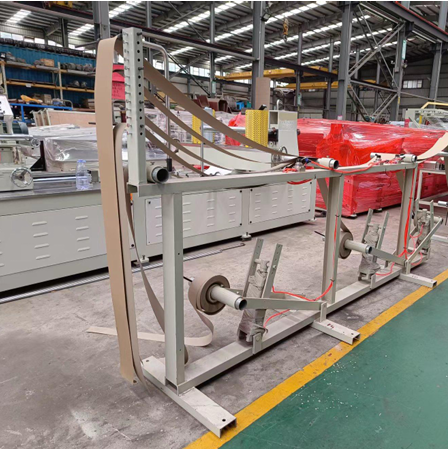

1 PC Paper Rack
1 Set Tool‑Box
2 PCS Driving Belts

Application Scenarios
- Industrial paper cores: tape core, film roll core, textile yarn paper tube Winding Machine
- Packaging paper cans: food paper cans, gift paper tubes, cosmetic packaging cylinders Winding Machine
- Construction, printing and other industries’ spiral paper pipe products

Why Buy From Us
Factory direct supply, strict pre‑shipment running test; test video & photos can be provided before delivery.
1.Complete English operation manual, remote online technical guidance for installation, commissioning and operator training.
2.Spare‑parts supply support for long‑term after‑sales maintenance.
3.Custom‑tuned molds and partial configurations available according to customers’ target paper tube sizes.
Call‑to‑Action
Send us your target paper tube inner diameter, wall thickness, paper layers and expected production speed. Our engineering team will give you professional proposal and quotation for ZG‑250‑2 paper tube machine.
